01
Operations performed
- Punching
- Laser cutting
- Bending
- MIG/MAG and TIG welding
- Drilling and tapping
- Grinding
- Pressing and riveting
- Stud welding
- Gasket bonding and sealing
- Assembly, packing and dispatch
Enquire about production ↗Custom and serial production
Sheet metal from drawing to finished assembly.
Laser cutting, punching, bending, welding, assembly and surface treatment in a single production flow.
Technical capabilities ↓
HOBES / Horní Benešov
1 600 m²production area
12 kWlaser source
320 tmax. bending force
Field / Engineering production
Production in detail
Engineering production
Engineering production was fully introduced in 2012. A dispatch hall for storing finished products was added in 2019.
Production is welding-certified to ČSN EN ISO 3834-2 and follows ISO 9001, IATF 16949 and ISO 14001 standards. We dispatch serial orders from safety stock and can deliver Just-In-Time.
Technology and capacity
Specific equipment.
Precise specifications.
02
Cutting and punching
E6 punching press
30 tonne punching headsheet 1 500 × 4 000 mmthickness up to 8 mm
Laser BODOR P4
max. sheet 2 000 × 4 000 mm12 kW sourceacceleration 4,0 Gspeed 200 m/minpositioning ±0,05 mmrepositioning ±0,03 mm
03
Press brakes
DURMAZLAR E30120
length 3 000 mmpress force 120 tonnes

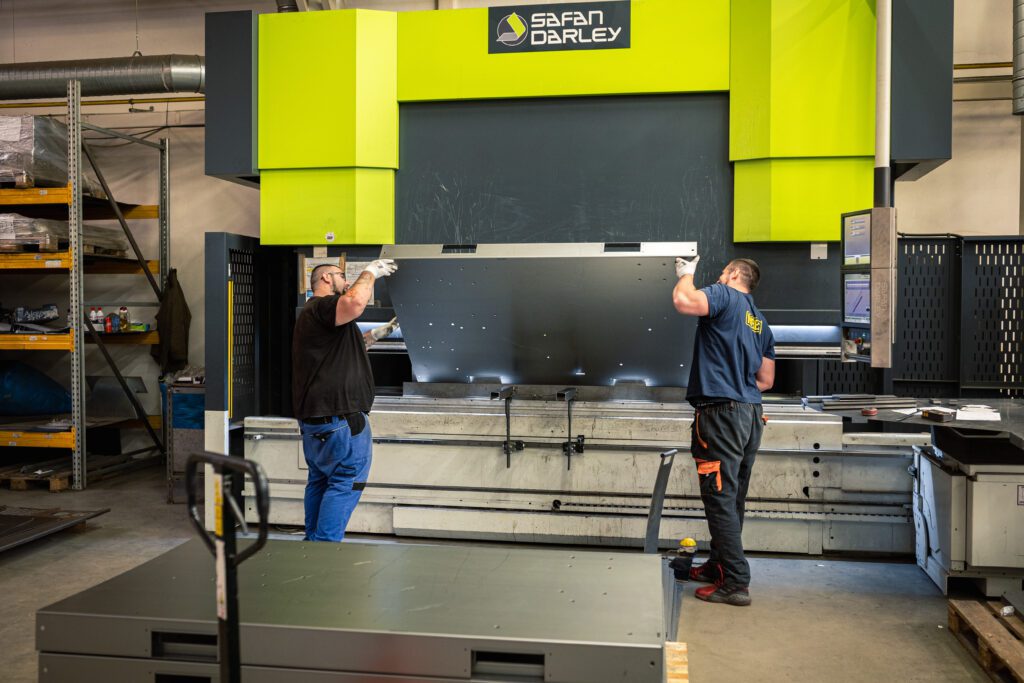

SAFAN H320
length 4 000 mmbending force 320 tonnes
SAFAN H230
length 3 778 mmbending force 230 tonnes
04
Welding and handling
The manual welding shop has MIG/MAG technology, a LORCH S5 SPEEDPULSE pulsed source and a manual plasma source. Extracted booths are complemented by modular plasma-nitrided tables with 25 mm thick tops.
- resistance stud welding in the 3–13 mm range
- materials: steel, stainless and heat-resistant steel
- two overhead cranes with capacities of 5 and 3,5 tonnes
- materials: grade 11…, S235, QsTe…, aluminium, brass and stainless steel
