01
Software equipment
- SolidWorks – design
- Logopress – layout and simulation
- Fanuc Robocut – wire EDM programming
- SolidCAM – machining centre programming
Enquire about production ↗Design / Machining / Tools
Precision starts with in-house tooling.
Design, machining and manufacture of individual parts, small batches and complete tools.
Technical capabilities ↓
HOBES / Horní Benešov
CAD/CAMdesign, layout and programming
CNC + EDMmilling and electrical discharge machining
Parts and toolsone-off and small-batch production
Field / Toolshop
Production in detail
Toolshop
We manufacture cutting, punching, riveting, progressive, bending and combined tools, as well as inspection, welding and auxiliary tools.
The toolshop's quality is confirmed by ISO 9001, IATF 16949 and ISO 14001 systems. Tool and part design and production deadlines are agreed individually.
Technology and capacity
Specific equipment.
Precise specifications.
02
Electrical discharge machining

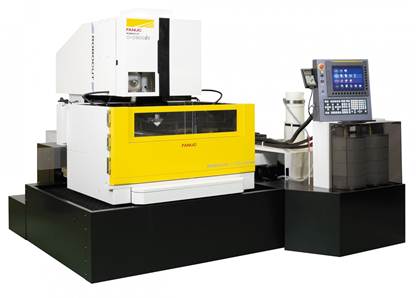

FANUC Robocut α-0iD
longitudinal travel 370 mmtransverse travel 270 mmcutting height 255 mm
FANUC Robocut α-C800iB
longitudinal travel 800 mmtransverse travel 600 mmcutting height 310 mm
FANUC Robocut α-C400iB
longitudinal travel 400 mmtransverse travel 300 mmcutting height 255 mm
PENTA 433GS die-sinking EDM
longitudinal travel 400 mmtransverse travel 300 mmvertical travel 300 mm
03
Milling, grinding and CNC
FTU 1500 milling machine
longitudinal travel 1 500 mmtransverse travel 300 mmspindle head height 550 mm
CHEVALIER FSG-2040AD-II
max. workpiece 500 × 1 000 mm
PFG-DL3060AH
max. workpiece 300 × 600 mm
JOHNFORD VMC-3000 SHD
table 3 200 × 1 000 mmX/Y/Z axes: 3 050 / 1 100 / 800 mmload 4 800 kg4th and 5th axes
MCV 754
longitudinal travel 754 mmtransverse travel 500 mmvertical travel 550 mm
Enquiry / Toolshop
