01
Frame range
Without rebate
Z for masonryZO rounded for masonryYZ for precision masonryS for plasterboard
With seal rebate
ZT for masonryYZT for precision masonryST for plasterboard
Double-frame casing
HDTRC3 security
Enquire about production ↗Steel door systems
Doors and frames. Precisely to your specification.
Standard, casing and security frames and steel doors with fire, smoke and acoustic resistance.
Technical capabilities ↓
HOBES / Horní Benešov
RC3security version
EW 90fire resistance
43 dBacoustic attenuation
Field / Frames and doors

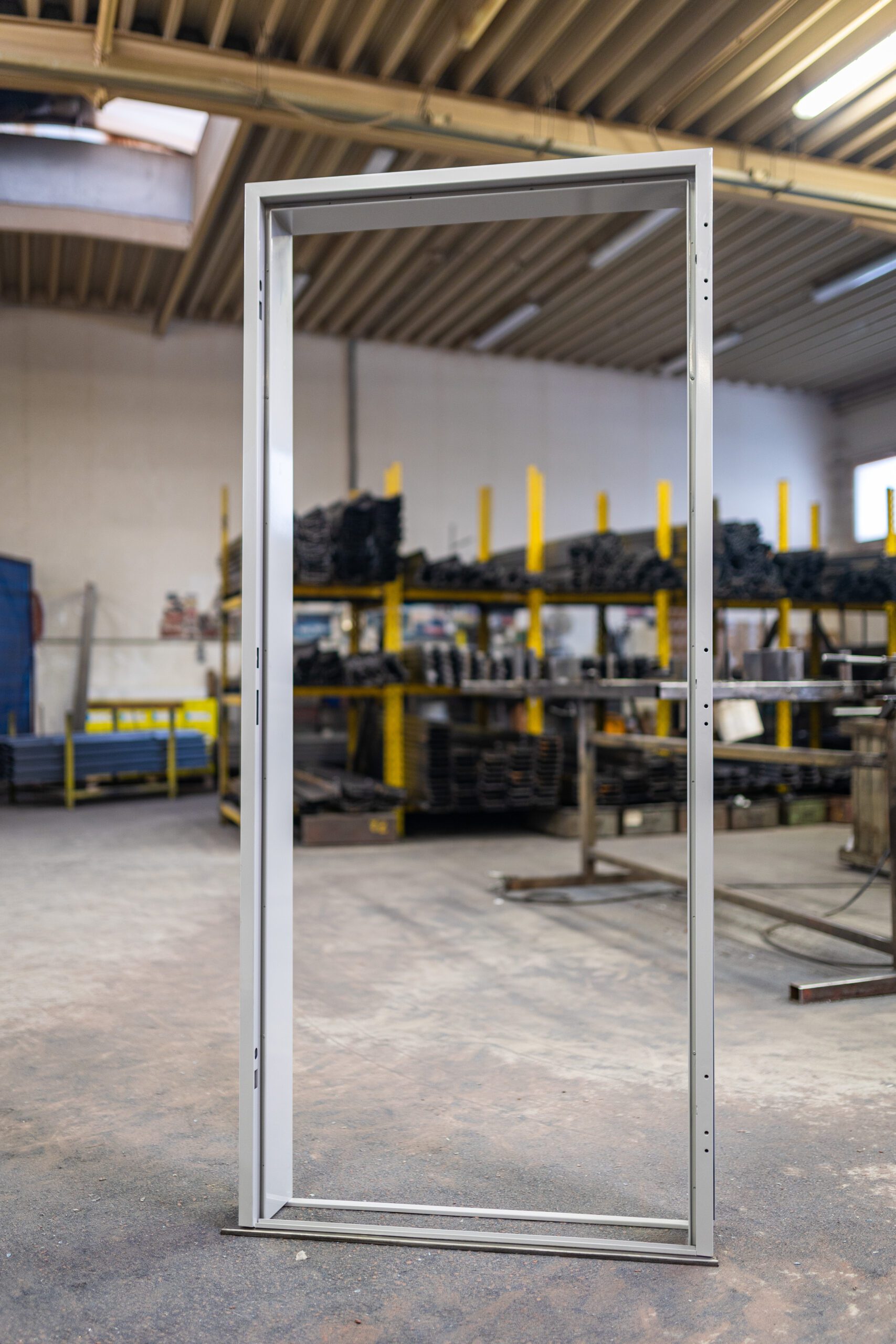

Production in detail
Frames and doors
We supply steel frames with a transport coating or KOMAXIT powder coating. In addition to standard profiles, we manufacture non-standard solutions by agreement.
The range includes frames with fanlights and sidelights, X-ray frames with lead inserts, corner and hospital frames, and versions prepared for electric locks.
Technology and capacity
Specific equipment.
Precise specifications.
02
Rebated doors
Single-leaf / thickness 43 mm
height 1 970 mmwidths 600–1 200 mmEI/EW 30 DP1 to EW 90 DP1galvanized or RALsmoke-tightRw 32 / 35 / 43 dB
03
Flush doors
Single- or double-leaf
thickness 43 / 53 / 63 mmheight 1 970 mmsingle-leaf widths 600–1 200 mmdouble-leaf widths 1 250–2 000 mmEI/EW 30 DP1 to EW 90 DP1Rw 32 / 35 / 43 dB
04
Preparations and optional extras
- height modification
- security hardware
- panic bar or panic lock
- panoramic peephole
- electric lock and cable grommet
- three-point lock
- electric strike in the frame
- anti-lift pins
Enquiry / Frames and doors
Let's discuss your
production project.
Contact for this fieldPetr SádovskýHOBES frame manufacture and sales / Vracov facility+420 734 320 436petr.sadovsky@hobes.cz
